Modelos

adquio pro

The most complete device in connectivity.

adquio lite

Similar to the Pro model, without screen or integrated inputs and outputs.

adquio mini

Reduced version without entrances or outputs. Ideal for data gateway.

specs

Below we show the three members of the ecosystem adquio compared:

Characteristic adquio pro adquio lite adquio mini Value
Power supply 24V DC 24V DC 24V DC
Consumption Máx 10w Máx 6w Máx 5w
Operating time without external power <=20s <=20s 0
Processor Allwinner H3, Quad-core Cortex-A7 Allwinner H3, Quad-core Cortex-A7 Allwinner H3, Quad-core Cortex-A7
RAM 512Mb DDR3 512Mb DDR3 512Mb DDR3
Ethernet WAN 1 1 1 100Mb/s
Ethernet LAN 3 3 0 100Mb/s
Wifi B/G/N B/G/N B/G/N
Wifi Access point Yes, only for configuration Yes, only for configuration Yes, only for configuration
USB Host 1 1 1 2.0
Micro SD Slot 1 1 0 Up to 128Gb
485 Ports 4 4 4 Compatible with Modbus RTU and Bacnet MS/TP up to 115200bps
Digital outputs 10 0 0 24V with power transistors
Digital inputs 10 0 0 24 Volts protected.
Analog inputs 7 0 0 0-10V protected
Analog outputs 7 0 0 0-10V
Ports for PT1000 probes 4 0 0 2 cables
Indicators LEDs 5, Power, Online, Buse activity, Network activity and error 5, Power, Online, Buse activity, Network activity and error 2 Power and Online
Screen 1 0 0 OLED 2,42”, 128x64 pixels, 21 characters x 8 lines
Integrated keyboard 1 0 0 6 keys: Esc, Ok y 4 Arrow keys.
Lateral expansions 2 2 0 Allows you to connect expansion modules and expand the functionality of adquio so plug and play

Connections

adquiopro

Front connectors, upper indicators, screen and keyboard

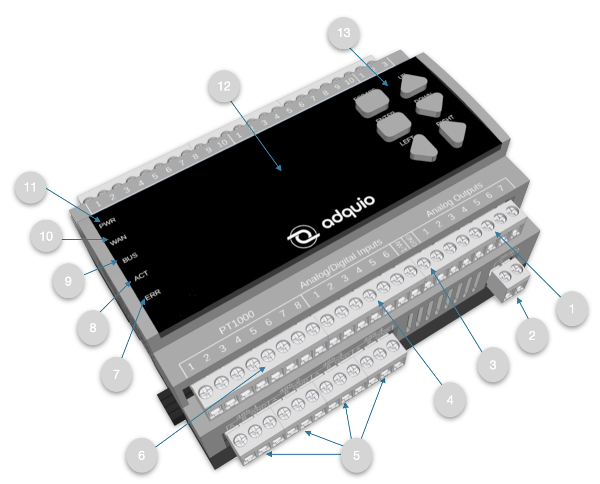

Front connectors 1. 7 Analog outputs from 0 to 10V. 2. 24V power supply. 4. 7 Analog inputs Range 0-10 V. Configurable as digital between variable ranges of 0-24V. 5. 4 Protected ports 485, can be connected simultaneously to 4 buses with up to 247 devices on each bus, Modbus and Bacnet buses can be intermingled according to the needs of each installation and can be configured up to 115200bps. 6. Connection for up to 4 PT1000 and calibrated probes each separately. 7. Error indicator 8. Network activity indicator 9. Activity indicator on buses 485 10. Internet connection indicator 11. Power indicator, flashes while the device starts 12. Oled Screen 2,42”, 128x64 pixels, 21 characters x 8 lines 13. Keyboard: 6 keys: Esc, Ok y 4 Address keys.

Rear connectors

Rear connectors

  1. 10 Digital power outputs at 24V, can directly handle DIN rail power relays.
  2. USB 2.0 port, It allows expansion to other protocols and expansion of the device.
  3. Micro SD card slot of up to 128GB, allows data storage, and its simple replacement is case of degradation.
  4. Network port WAN 100Mb/s It allows the Internet connection of the device.
  5. 10 digital inputs of 24V protected.
  6. 3 Network ports LAN 100Mb/s, allows the connection of any device with this interface to collect your data, as well as our Scada or other Disposals to collect data distributedly/collaboratively.
  7. 3 Ground connections (-).

Lateral expansion

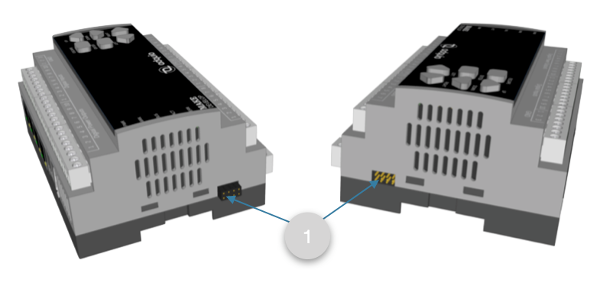

Detail of lateral expansion

  1. Side expansions on both sides, it supports up to 4 devices on each side and another 4 in the USB port, in total 12 expansions. Connected devices are recognized and configured automatically without needing to do absolutely nothing. Some examples of devices that can be connected:
  2. Module with expansions of inputs and outputs.
  3. Actuator modules with relays.
  4. Interfaces of new protocols such as Can Bus, KNX, Wiegand, etc.
  5. Radio interfaces like ZWave, Zigbee, etc.
  6. Etc.

adquio lite

Frontal connectors and upper indicators

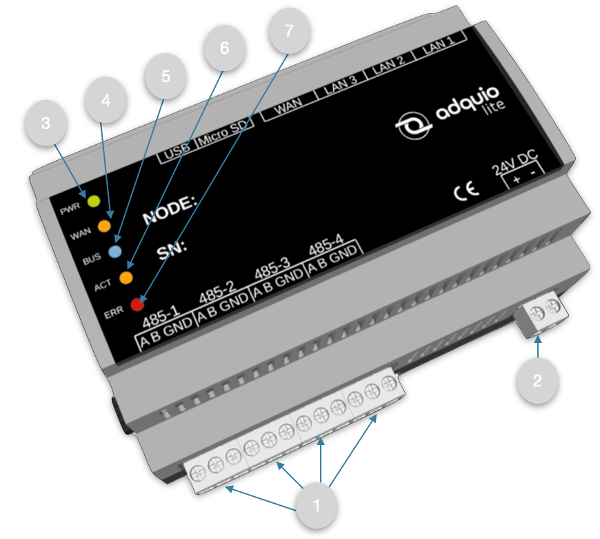

Front connectors

  1. 4 Ports 485, can be connected simultaneously to 4 buses with up to 247 devices on each bus, Modbus and Bacnet buses can be intermingled according to the needs of each installation and can be configured up to 115200 BPS.
  2. 24V power supply.
  3. Power indicator, flashes while the device starts
  4. Internet connection indicator
  5. Activity indicator on buses 485
  6. Network activity indicator
  7. Error indicator

Rear connectors

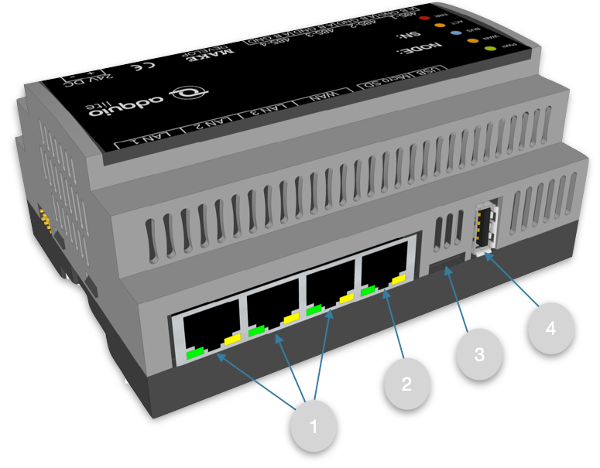

Rear connectors

  1. LAN ports 100MB/S, allows you to connect any device with this interface to collect your data, as well as our HMI or other acquies to collect data distributed.
  2. WAN network port 100Mb / s enables Internet connection device .
  3. Micro SD card slot up to 128GB, allows data storage, and its simple replacement is case of degradation.
  4. USB 2.0 port, allows expansion to other protocol and expansion of the device.

Lateral expansion

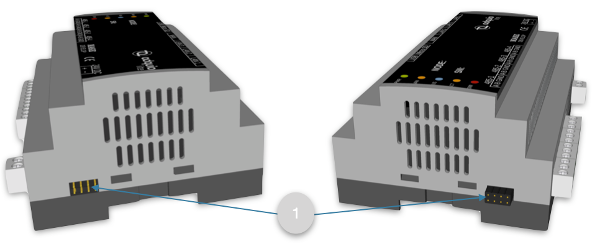

Detail of lateral expansion

  1. Lateral expansions on both sides, it supports up to 4 devices on each side directly and another 4 in your USB position, in total 12 expansions. Connected devices are recognized and configured automatically without needing to do absolutely nothing. Some examples of devices that can be connected:
  2. Module with expansions of entries and outputs.
  3. Actuating modules with relays.
  4. Interfaces of new protocols such as Can Bus, KNX, Wiegand, etc.
  5. Radio interfaces for ZWave, Zigbee, etc.
  6. Etc.

adquio mini

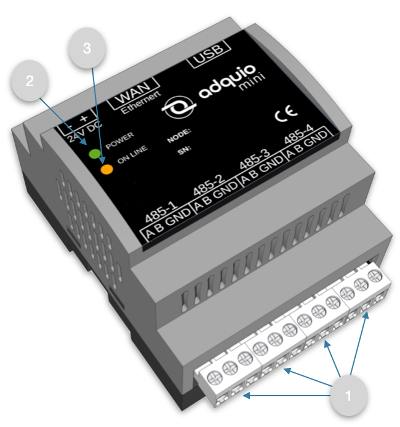

Front connectors and LEDs top indicators

Front connectors 1. 4 Protected ports 485, can be connected simultaneously to 4 buses with up to 247 devices on each bus, Modbus and Bacnet buses can be intermingled according to the needs of each installation and can be configured up to 115200bps. 2. Power, Normal operation. 3. On with Internet access.

Rear connectors

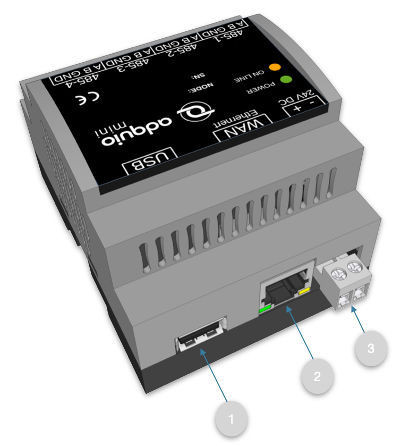

Rear connectors 1. USB 2.0 port, allows expansion to other protocols and device expansion. 2. WAN 100MB/S network port allows the Internet connection of the device. 3. 24V power supply.

Capabilities

  • adquio Allows query/control of devices and variables of multiple devices in a unified and centralized manner.

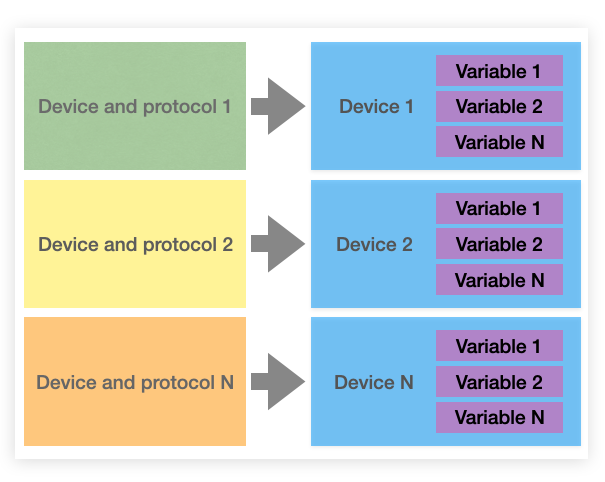

Devices and variables

  • Currently the supported communication protocol are:
  • Modbus RTU.
  • Modbus TCP.
  • BACnet MS/TP.
  • BACnet IP.
  • Mqtt
  • Casambi API

  • New protocols will be added according to the needs.

  • It also has a communication protocol between adquios through Ethernet that allows you to use one as a master and n as slaves, each one of them collect data from different devices and centralize all the variables and logic in the master. In this way, remote data collection is facilitated by sending a single Ethernet cable. In the following example we could be collecting data of up to 16 buses 485, hundreds of network devices, 40 digital inputs, 28 analog inputs, 24 pt1000, etc. There is no limit of connectable devices in this way. (All devices are adquio pro).

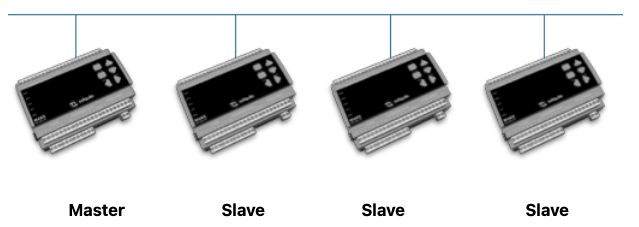

Master and slave

  • Can expand the capabilities of adquio with up to 12 devices connected directly (only adquio pro and adquio lite) and up to 33 more indirectly, a total of 45 devices worked as one. All of them are automatically configured by connecting them to acquire, removing a new device and all its variables for direct use of the installer / user. In the example, the total of devices that can be connected to one of its three expansion connectors are displayed (the third is its USB port).

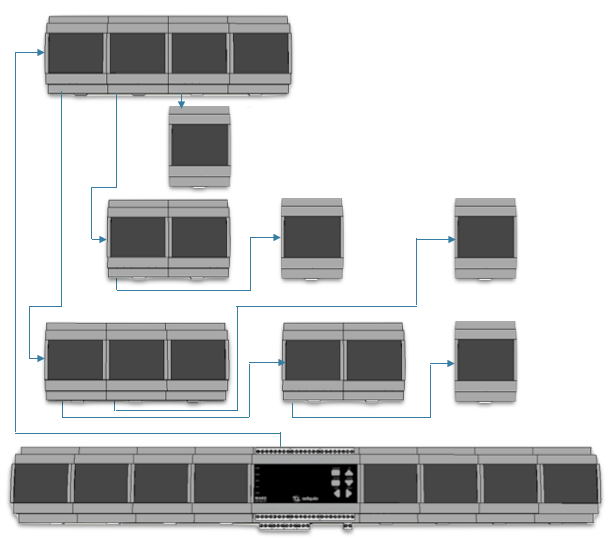

Example of expansion

  • adquio has a web interface that allows you to configure the device without the need to install any program, from the web browser on a laptop, a tablet or a mobile.

  • When connecting to adquio (pro and lite) By Ethernet cable with a laptop will provide you with an IP address automatically, to be able to access your configuration interface. Alternatively, it is possible to access by activating the WiFi access point. In the case of adquio mini We must manually configure our device with an IP in the IPs range 172.20.20.x / 24.

ADVANTAGE

  • High density of functions on a small device.
  • Many integrated inputs/output ports compared to competitors (only adquio pro).
  • High process power compared to PLCs from other brands.
  • High internal storage capacity for historical variables. We talk about GB when other brands talk about KB.
  • 4 Ethernet ports when other PLCs only have one(Only adquio pro and lite).
  • 4 Ports 485 when the PLCs of other brands only have 1 or 2.
  • 4 Inputs for PT1000 probes. In other PLCs, expansions are sold from 2 in 2 each module (only adquio pro).
  • Possibility of basic configuration on your integrated screen, in other brands a laptop and proprietary software is necessary (only adquio pro).
  • LEDs indicators that show at all times the status of the device.
  • Great possibilities of expansion, both by local network and directly by their integrated connectors (only adquio pro and adquio lite).
  • It can serve very rich web scenarios for tactile screens, tablets, mobile or computers.
  • Configurable from anywhere in the world without the need for any proprietary software.
  • Data collector for systems in the cloud, EQUS/Adquio Cloud are officially supported.
  • Act as router, separating the network from the internal devices of the company's network (only adquio pro and adquio lite).
